OtoSys IM100

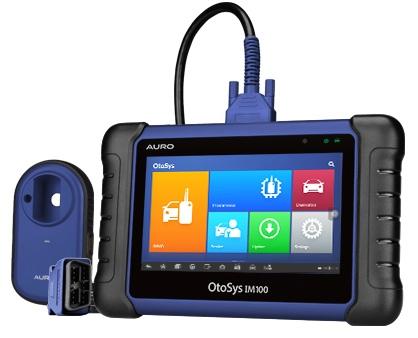

OtoSys IM100 from Auro is the ONE tool you need for modern vehicle key programming! Based on a 7-inch Android touchscreen tablet, and equipped with the key programmer UP200, the OtoSys IM100 provides unparalleled Immobilizer and Key Programming functions as well as OE-level diagnostic functions and services!
Features :
Support IMMO functions for different makes and models.
Equipped with UP200 to support transponder read/write/identification, ECU/EEPROM chip read/write and IMMO password read.
Display live data in text, graph & analog for easy data review.
Support relearn parking brake pad after replacement.
Support forced regeneration and adjusting injectors.
Support Steering Angle Sensor (SAS) services.
Support service mileage and service intervals reset.
Support TPMS sensor relearn.
Support battery registration and reset.
Specifications :
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 processor (1.6 GHz) |
| Memory | 1GB RAM DDR3 & 32GB ROM |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0; USB 2.0; Wi-Fi; HDMI Type A; Micro SD card slot (supports up to 32GB); |
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input/Output | Input: N/A; Output: buzzer; |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery; Charges via 5 VDC power supply; |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 55°C(32 to 131°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight | 788 g (2.42 lb.) |
| Supported Automotive Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
